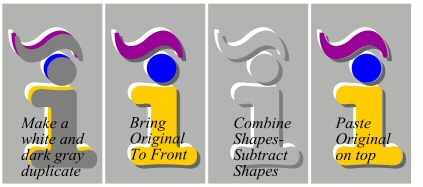

To create the embossed logo effect well create two duplicates of the stunning i/us logo. Well position one duplicate up and left and apply a white fill. The second duplicate well position down and right and fill 70% gray. Bring the original logo to the top and place a Copy in the Clipboard (Ctrl C). The logo and the white duplicate are selected and from Arrange, Combine Shapes-Subtract Shapes. Paste a Copy using Shift Ctrl V to place it directly on top. Repeat the process with the Copy and the dark gray duplicate. This creates a separate highlight and shadow edge. Paste a Copy on top.
